Product

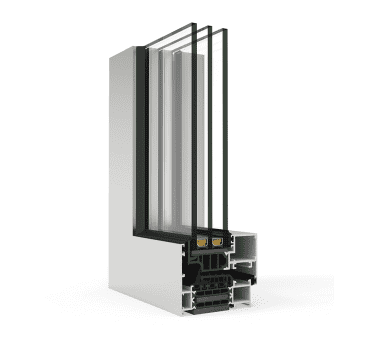

Elegant design with straight aestheticin which the sash is concealed behind the frame, thus maximising the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.
Options
Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle
Technical Data
» Glazing
Max. 51 mm / Min. 36 mm
» Opening possibilities
Inward opening
Side hung / Tilt & turn / Tilt only
» Sightlines
Frame 80 mm / Sash 80 mm
» Profile thickness
Window 1.9 mm
» Polyamide strip length
45 mm
» Maximum sash dimensions
Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
» Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems.
Colour powder coating (RAL, mottled and rough).
Wood effect powder coating.
Anti-bacterial powder coating.
Anodised.
Test Center
» Transmittance
Uw ≥ 0.8 (W/m2K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1650
» Wind resistance
(EN 12210) Class C5
Reference test 1.23 x 1.48 m / 2 sashes
